Using the VQL Console

The Vault Toolbox plugin includes a VQL Console for running read-only Vault queries directly within IntelliJ IDEA. This guide outlines how to write and run queries in the console and build queries visually with the Query Builder. Learn more about sending VQL queries.

Note

VQL is read-only and cannot modify data. Your user account must have the appropriate object and field permissions to query records.

Running Queries

Section link for Running Queries

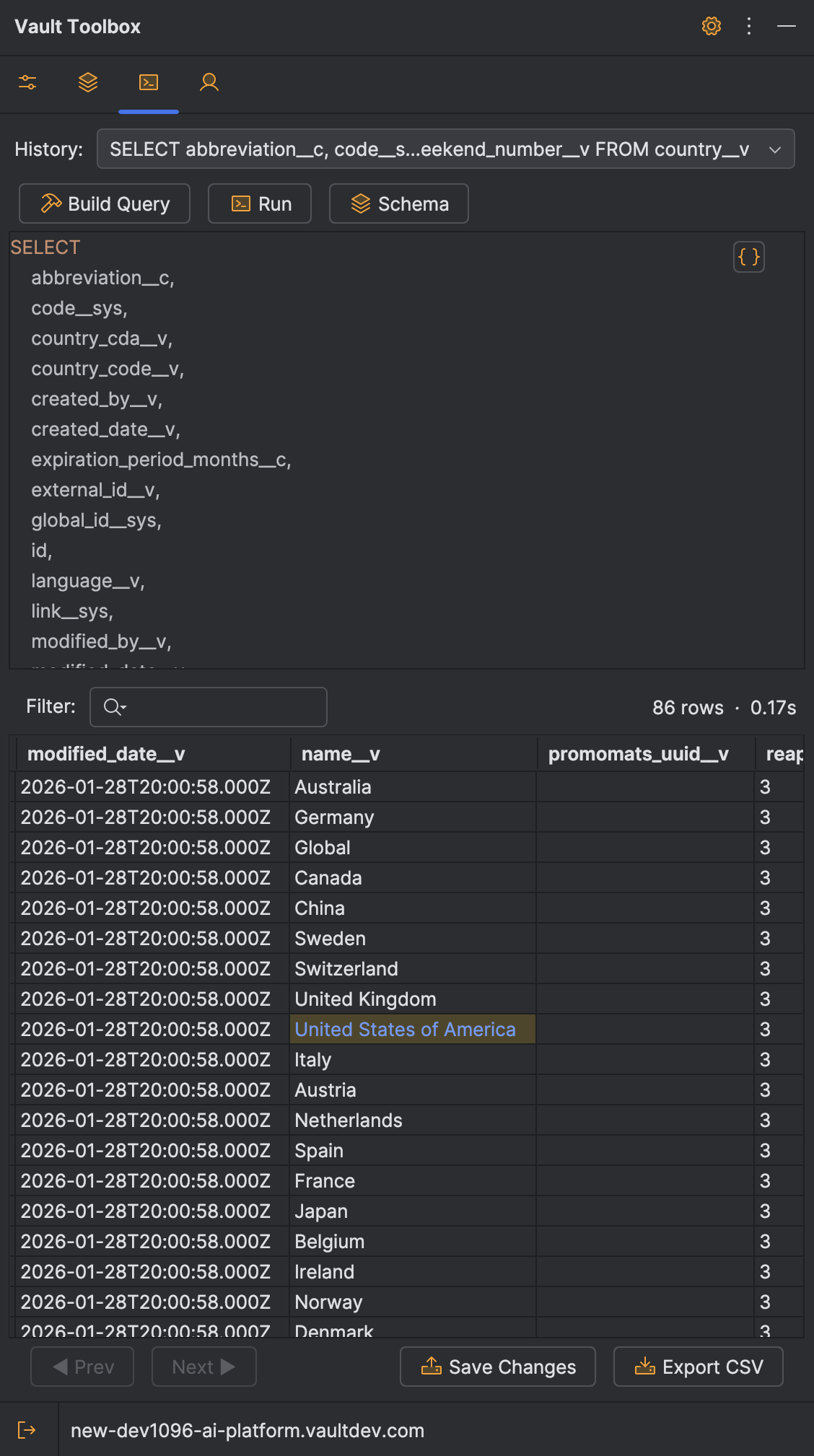

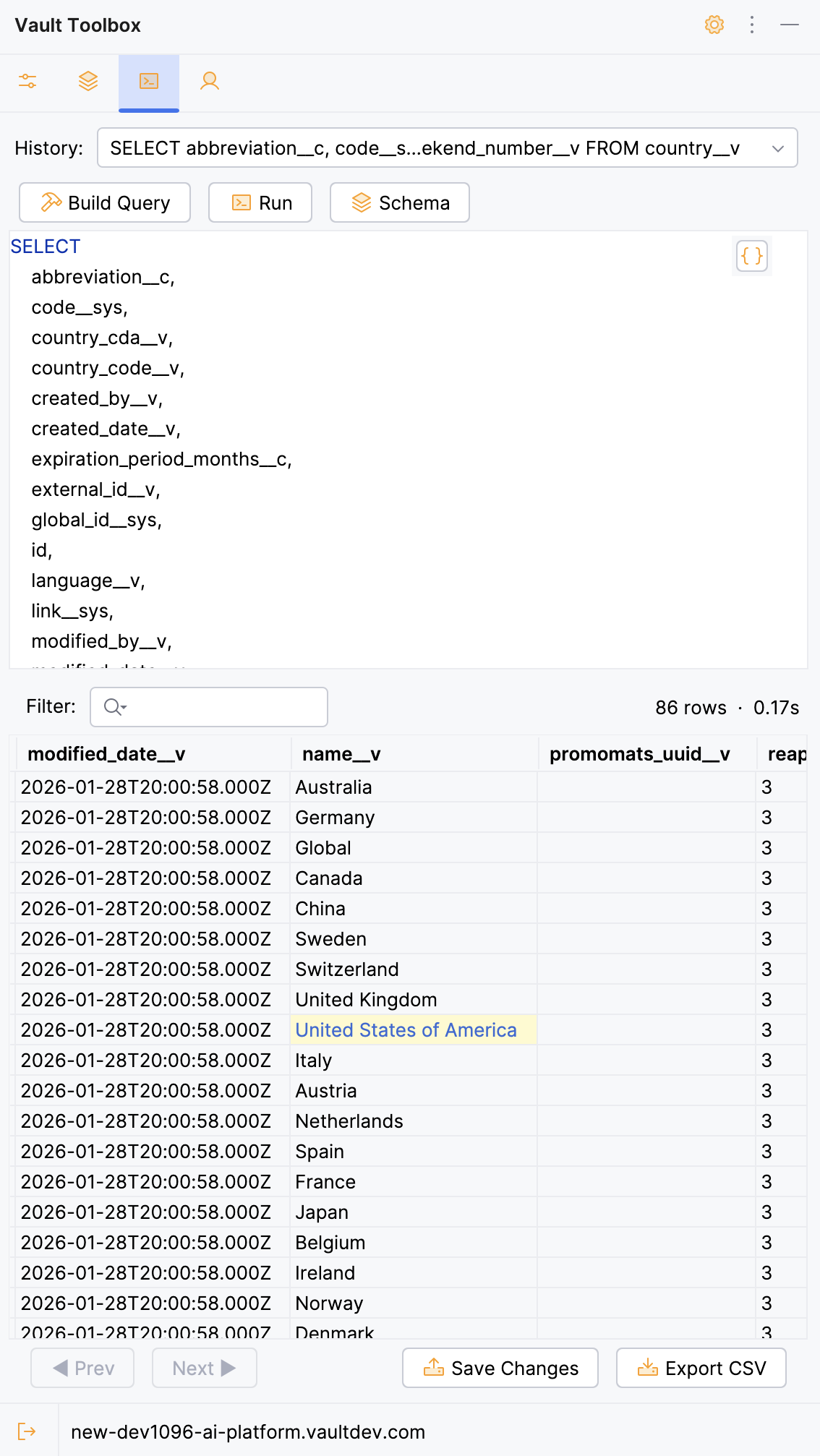

The VQL Console features syntax highlighting, object and field auto-completion, paginated results, CSV export, and persistent query history.

To run a query:

1. Within IntelliJ IDEA, open the Vault Toolbox plugin from the righthand sidebar.
2. Select the VQL Console () tab.
3. Type a VQL statement in the editor or select an existing query from the History dropdown. As you type, object and field names auto-complete.
4. Optional: Click within the editor to format the query for readability.
5. Click Run to execute the query. Alternatively, press Cmd+Enter (macOS) or Ctrl+Enter (Windows/Linux). To run only a portion of the query, select the text, then click Run.
6. Optional: While a query is running, click Cancel to stop it.

Results display in a grid below the editor. To page through results, click ◀ Prev or Next ▶ at the bottom of the results panel. The status bar shows the row count and elapsed time. Vault Toolbox retains the last 25 queries in the History dropdown across IDE sessions.

Editing Results

Section link for Editing Results

Double-click on a cell in the results grid to edit its value. Click Save Changes to deploy these changes to Vault.

Exporting Results

Section link for Exporting Results

To export the current page of results to a CSV file in your project directory, click Export CSV.

Revealing Query Targets

Section link for Revealing Query Targets

To reveal the object the query is targeting in the Schema Explorer, click Schema. Select an object or field name in the editor first to reveal that specific item, or include a FROM clause to reveal the object it names.

Building Queries Visually

Section link for Building Queries Visually

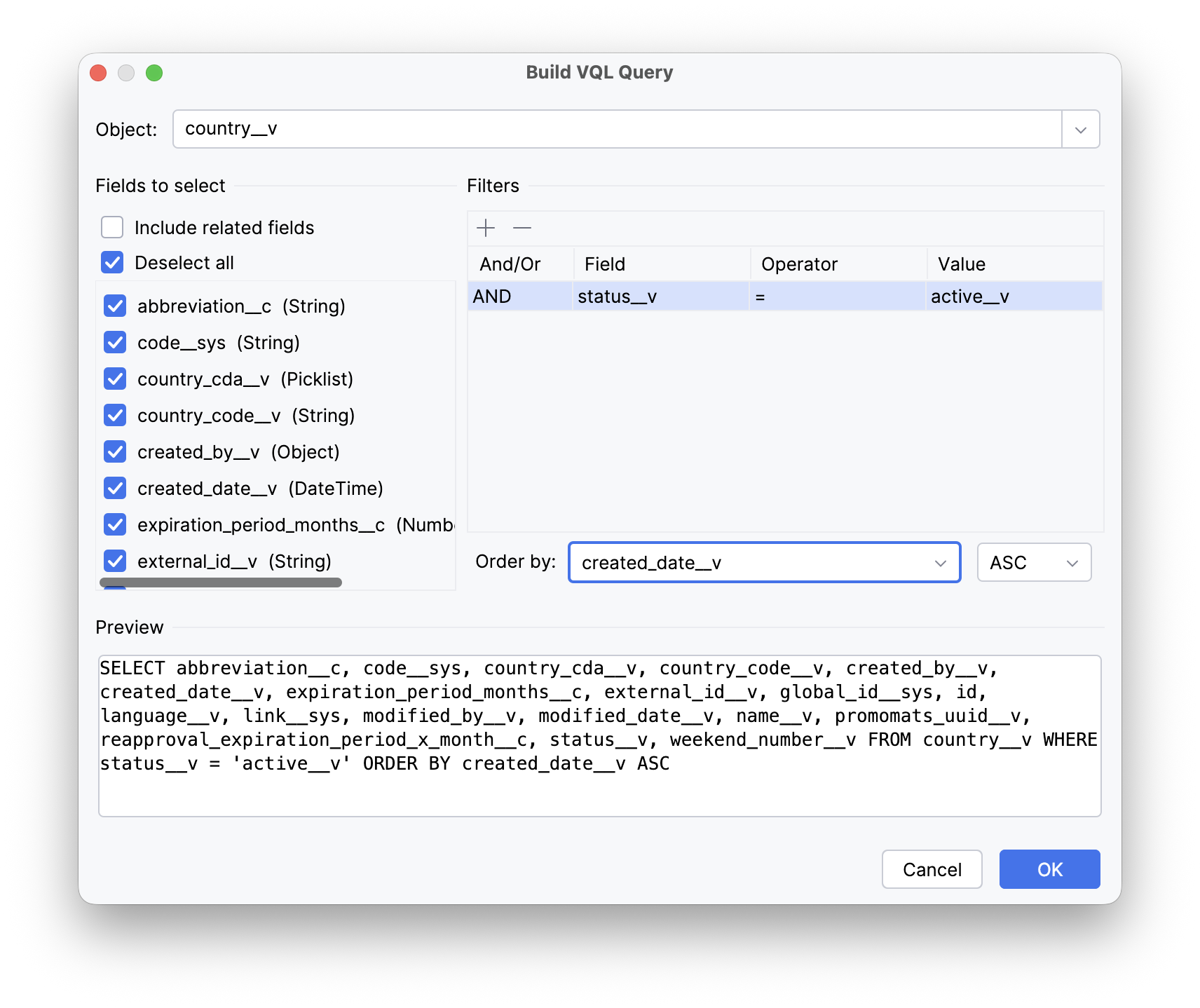

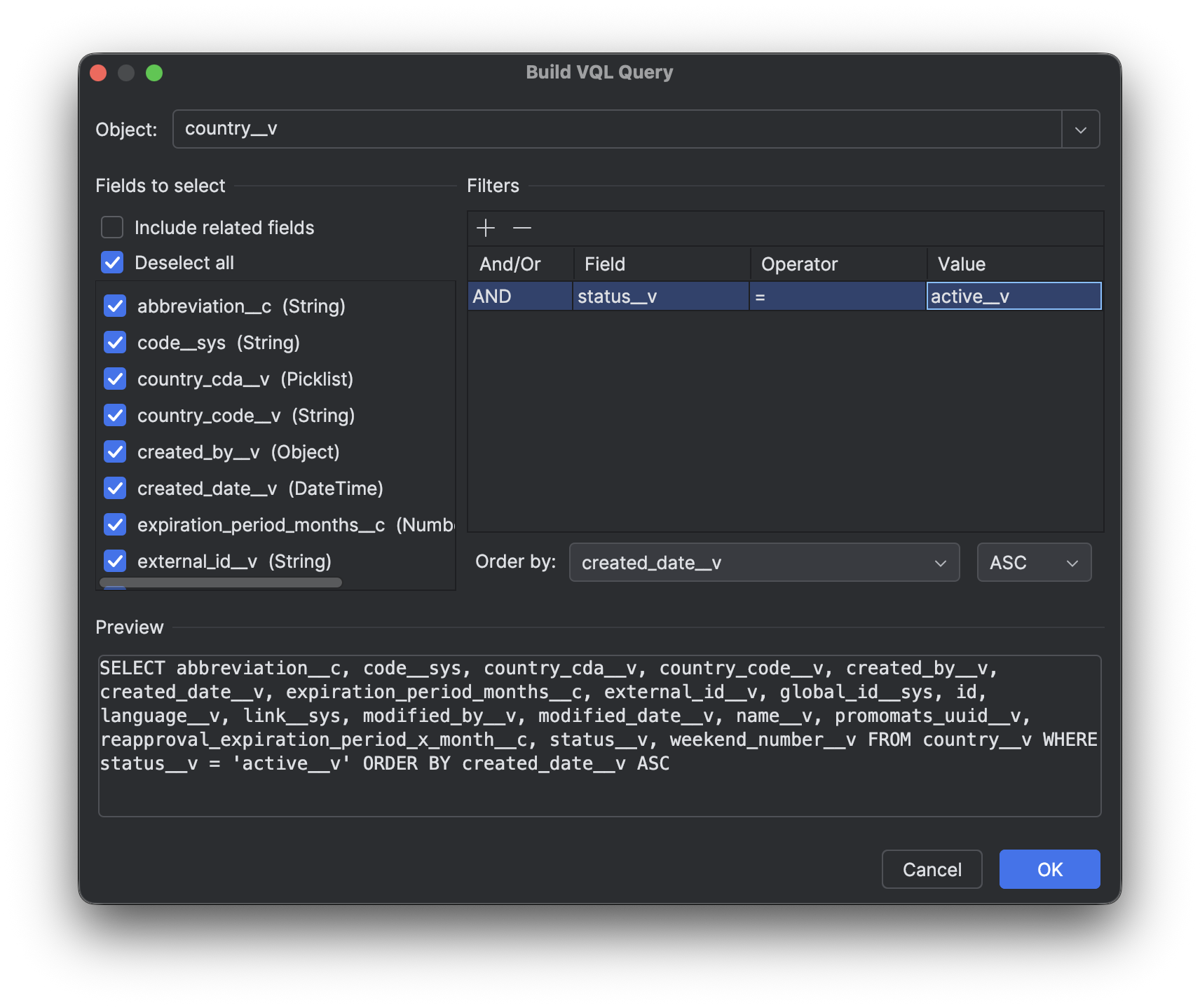

The Query Builder helps you construct a VQL statement without writing it by hand. Pick an object, choose which fields to select, add filter conditions, and optionally order the results — the dialog displays a live preview of the resulting VQL.

To build a query visually:

1. From the VQL Console, click Build Query.
2. In the dialog, select an object from the Object dropdown.

3. In the Fields to select list, select the checkbox for each field to include. Select Select all to include every field, or Include related fields to surface fields available through relationships.
4. Optional: Under Filters, click to add a filter row. Select a Field, an Operator (=, !=, <, >, <=, >=, LIKE, IN, IS NULL, IS NOT NULL), and provide a Value. Use the And/Or column to combine multiple conditions.
5. Optional: Under Order By, select a field and a direction: ASC or DESC.
6. Review the live VQL preview at the bottom of the dialog, then click OK to insert the query into the console editor.

The generated query does not run automatically. Review and edit it in the console, then click Run to send the query.
